DESCRIPTION

Basic Info

Model NO.	Cutting and grinding
Application	Ceramics, Cement Brick, Granite, Marble
Type for Grinding Machine	Disc Grinding Machine
Grinding Machine Type	Barrel Polishing Machine
Grinding Method	Wet Grind
Certification	CE
Condition	New
Processingsize	400-1600mm
Cuttingspeed	1.5-2circle/Min
Edgegrindingandchamferingspeed	2-3circle/Min
Diameterofcuttingblade	130mm
Cuttingheads	2
Polishingofwheels	3
Processingthickness	6-30mm
Waterconsumption	150L/Hour
Totalpower	12kw
Weight	2000kg
Machinesize	4500*1300*1700mm
Packagesize	4600*1400*1850mm
Transport Package	Wooden Box
Specification	4500*1300*1700mm
Trademark	Hoyun machinery
Origin	China
Production Capacity	100 Set/1 Year

Product Description

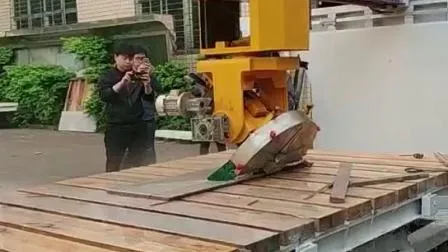

The porcelain slab round table cutting and grinding all-in-ones machine is specially designed for processing porcelain round table. The machine can complete cutting, edge grinding and deburring at once, and does not need to move back and forth. It has high production efficiency.The effect of cutting, edge grinding and deburring

1.Cutting, edge grinding and deburring
2.Does not need to move back and forth
3.High production efficiency
4.The cutting size is precisely adjusted by CNC control system
5.Air pressure for edging, chamfering and polishing

Cutting speed	1.5-2 Circle/minute	Diameter of cutting blade	130mm
Edging and chamfering speed	2-3 Circle/minute	Processing thickness	6-20mm
Grinding and polishing wheel number	3	Total power	12KW
Water consumption	150L/min	Weight	1500KG
Working table size		800-1600mm

The cutting size is precisely adjusted by CNC control system,air pressure for edge grinding, chamfering and polishing.The machine can complete cutting, edge grinding and deburring at once, and does not need to move back and forth.Taking 800mm round table as an example, the completion time of cutting,edge grinding and polishing is about 4-5 minutes.
Foshan Nanhai Hongyun Ceramic Machinery co.,ltd.
Was founded in 2008, with the location at the No. 1, Third Industrial Zone, Baishaqiao Village, Shishan Town,Nanhai District, Foshan City, Guangdong Province,China,Covering an area of 3000 square meters. Our company is a professional supplier of sintered stone porcelain&ceramic tile deep processing equipments,manufacturing in ceramic/porcelain tile cutting machine, 45 degree chamfering machine, arc polishing machine, CNC cutting machine, automatic cutting machine, CNC manual cutting machine, and multifunctional cutting machine and so on.

Before delivery

We would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer
Q: What's your quality control system?
A: All our CNC machines are with CE certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm before delivery.
Q: If I don't know how to use the machine, can you teach me?
A: Yes, sure. There is a U memory disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime. Q: Does the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q: How is your after sales service?
A: Our sales are online for 24-hours. We can also supply overseas install service.
Q: Delivery timeA: 1-3 days, if we have the machine in stock. 5-7 days, if change voltage or special made. 7-15 days, Large quanaitybig production line.
Q: Guarantee termsA: MachineQuality guarantee term is for one year. Still Provide technical support forever for free. Also supplier the spare parts.
